受益于新能源汽车的蓬勃发展，汽车电子的需求增长迅猛；相较于传统汽车，新能源汽车对于模拟芯片的需求由电动化和智能化所催生。如动力系统、车身域、汽车座舱、自动驾驶、车载娱乐、车身电子及照明等领域。

新能源汽车对模拟芯片等电子元器件的可靠性要求极高；润石全力推进车规级模拟芯片的研发和生产，采用与国际一流车规级芯片原厂相同水准的制程，材料，工艺，选取拥有IATF16949资质，制程通过AEC-Q100认证且有实际车规量产经验的晶圆厂与拥有IATF16949资质，国际Tier1车规级芯片量产经验的封测代工厂如苏州日月新半导体，通富微电合作，开发导入符合AEC-Q100 Grede1的车规级产品【湿敏等级达到MSL1】，由独立的第三方实验室做车规AEC-Q100的认证；与此同时润石正在国际独立第三方检验与认证机构德国TüV莱茵的辅导下，导入ISO26262 ASILD的功能安全流程体系。

AEC-Q100

Grade1(MSL1)已认证料号

类型	产品	特点	AEC-Q100	封装
运算放大器	RS8551-Q1	Zero-Drift, Rail-to-Rail I/O CMOS Operational Amplifiers	√	SOT23-5
	RS8552-Q1	Zero-Drift, Rail-to-Rail I/O CMOS Operational Amplifiers	√	SOP8,MSOP8
	RS8557-Q1	Zero-Drift, Rail-to-Rail /O CMOS Operational Amplifiers	√	SOT23-5
	RS8558-Q1	Zero-Drift, Rail-to-Rail l/O CMOS Operational Amplifiers	√	SOP8,MSOP8
	RS8701-Q1	50MHz, Zero-Crossover, Low-Distortion, RRI/O Operational Amplifier	√	SOP8
	RS8702-Q1	50MHz, Zero-Crossover, Low-Distortion, RRI/O Operational Amplifier	√	SOP8
	RS8762P-Q1	250MHz, Rail-to-Rail Input /Output CMOS Operational Amplifier	√	MSOP8
	RS321BK-Q1	1MHz, Precision, Rail-to-Rail I/O CMOS Operational Amplifier	√	SC70-5
	RS6331-Q1	1.4MHz, Rail-to-Rail l/O CMOS Operational Amplifier	√	SC70-5,SOT23-5
	RS6332-Q1	1.4MHz, Rail-to-Rail I/O CMOS Operational Amplifier	√	SOP8, MSOP8
	RS6334-Q1	1.4MHz, Rail-to-Rail l/O CMOS Operational Amplifier	√	SOP14,TSSOP14
	RS8411-Q1	32V, 1.2MHz Rail-to-Rail Output CMOS Operational Amplifier	√	SOT23-5
	RS8412-Q1	32V,1.2MHz Rail-to-Rail Output CMOS Operational Amplifier	√	SOP8, MSOP8, TSSOP8
	RS8414-Q1	26V,1.2MHz Rail-to-Rail Output CMOS Operational Amplifier	√	SOP14,TSSOP14
	RS8442-Q1	32V, 3.8MHz Rail-to-Rail Output CMOS Operational Amplifier	√	SOP8,MSOP8,TSSOP8
	RS8444-Q1	32V, 3.8MHz Rail-to-Rail Output CMOS Operational Amplifier	√	SOP14,TSSOP14
	RS8452-Q1	32V, 8MHz Rail-to-Rail Output CMOS Operational Amplifier	√	SOP8, MSOP8
	RS8454-Q1	26V, 8MHz Rail-to-Rail Output CMOS Operational Amplifier	√	SOP14
	RS8473-Q1	Low-Distortion, Dual-Channel OPA with Integrated Protection for Resolver Drive	√	ETSSOP14
	RS621-Q1	7MHz, Rail-to-Rail I/O CMOS Operational Amplifier	√	SOT23-5
	RS622-Q1	7MHz, Rail-to-Rail I/O CMOS Operational Amplifier	√	SOP8, MSOP8, DFN2x2-8
	RS721P-Q1	13MHz, Rail-to-Rail I/O CMOS Operational Amplifier	√	SOT23-5
	RS722P-Q1	13MHz, Rail-to-Rail I/O CMOS Operational Amplifier	√	SOP8, MSOP8
	RS724-Q1	13MHz, Rail-to-Rail I/O CMOS Operational Amplifier	√	SOP14,TSSOP14
	RS199XP-Q1	Bidirectional, Zero-Drift, High or Low Side, Voltage Output, Current Shunt Monitor	√	SC70-6
	RSA240-Q1	Bidirectional, Zero-Drift, High or Low Side, Voltage Output, Current Shunt Monitor	√	TSSOP8,SOP8

比较器	RS331-Q1	General-Purpose Low-Voltage Open-Drain Output Comparator	√	SOT23-5
	RS393-Q1	General-Purpose Low-Voltage Open-Drain Output Comparator	√	SOP8
	LM2903-Q1	General-Purpose High-Voltage Open-Drain Output Quad Comparator	√	SOP8, MSOP8, TSSOP8
	LM2903V-Q1	General-Purpose High-Voltage Open-Drain Output Quad Comparators	√	SOP8, MSOP8,TSSOP8
	LM2901-Q1	General-Purpose High-Voltage Open-Drain Output Quad Comparators	√	SOP14,TSSOP14
	LM2901V-Q1	MSOPGeneral-Purpose High-Voltage Open-Drain Output Quad Comparators-8	√	SOP14,TSSOP14
	RS8904-Q1	High Speed, RRIO, Push-Pull Output Comparator	√	SOT23-5
	RS8905-Q1	Nano-Power, CMOS Input, RRIO, Push-Pull Output Comparator	√	MSOP8
	RS8907-Q1	Nano-Power, CMOS Input, RRIO, Push-Pull Output Comparator	√	SOT23-5

模拟开关	RS8944-Q1	Precision Comparator Family	√	TSSOP14
	RS2057A-Q1	Wide-Bandwidth 1-Channel SPDT Analog Switch	√	SC70-6
	RS2166A-Q1	4.5Ω Single Bilateral SPST Analog Switch	√	SC70-5
	RS2058A-Q1	4.5Ω Low Voltage Dual SPDT Analog Switch	√	MSOP10
	RS2233-Q1	Wide-Bandwidth 4-Channel SPDT Video Analog Switch	√	TSSOP16
	RS2251-Q1	CMOS Single 8-Channel Analog Multiplexer/Demultiplexer	√	TSSOP16
	RS2260-Q1	CMOS Single 8-Channel Analog Multiplexer/Demultiplexer	√	TSSOP16, QFN2.5x3.5-16L
	RMUX1308-Q1	8:1, 1-Channel Multiplexers with Injection Current Control	On going	TSSOP16,QFN2.5x3.5-16
	RMUX1309-Q1	4:1, 2-Channel Multiplexers with Injection Current Control	√	TSSOP16, QFN2.5x3.5-16L

电平转换器	RS0102-Q1	2-Bit Bidirectional Voltage-Level Translator for OpenDrain and Push-Pull Applications	√	UQFN2x1.7-12, TSSOP14, QFN3.5x3.5-14
	RS0104-Q1	4-Bit Bidirectional Voltage-Level Translator for OpenDrain and Push-Pull Applications	√	TSSOP-14,QFN2x1.7-12L
	RS0108-Q1	8-Bit Bidirectional Voltage-Level Translator for OpenDrain and Push-Pull Applications	√	TSSOP-20
	RS0204A-Q1	4-Bit Bidirectional Voltage-Level Translator with Automatic Direction Sensing	√	UQFN2x1.7-12, TSSOP14
	RS0208A-Q1	8-Bit Bidirectional Voltage-Level Translator withAutomatic Direction Sensing	√	UQFN2x1.7-12, TSSOP14
	RS0302-Q1	Dual Bidirectional I2C-Bus and SMBus Voltage-Level Translator	√	VSSOP-8
	RS1T45-Q1	1-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs	√	SC70-6
	RS2T45-Q1	2-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs	√	VSSOP-8
	RS4T245-Q1	4-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Output	√	QFN2.5x3.5-16
	RS4T774-Q1	4-Bit Dual-Supply Bus Transceiver with Independent Direction Control	On going	QFN2.6x1.8-16
	RS8T245-Q1	8-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Output	√	TSSOP24
	RS8T245A-Q1	8-Bit Dual-Supply Bus Transceiver with ConfigurableVoltage \ Translation and 3-State Output	√	TSSOP24, QFN3.5X5.5-24
	RS74AVCH4T245-Q1	4-Bit Dual-Supply Bus Transceiver With ConfigurableLevel-Shifting,Voltage Translation	√	DHVQFN16

逻辑	RS1G00-Q1	Single Channel 2-Input NAND Gate	√	SC70-5
	RS2G00-Q1	Dual Channel 2-Input NAND Gate	√	VSSOP8, TSSOP8
	RS4G00-Q1	Quad Channel 2-Input NAND Gate	√	SOP14, TSSOP14
	RS1G04-Q1	Single Channel Inverter	√	SC70-5
	RS2G04-Q1	Dual Channel Inverter	√	SC70-6
	RS1G07-Q1	Single Channel Non-inverting Buffer, Open-drain Output	√	SC70-5
	RS1G09-Q1	Single 2-Input AND Gate with Open-DrainOutput	√	SC70-5
	RS1G08-Q1	Single 2-Input Positive-AND Gate	√	SOT23-5,SC70-5
	RS1GT08-Q1	Single Channel 2-Input AND Gate,TTL Input	√	SC70-5
	RS2G08-Q1	Dual Channel 2-Input Positive-AND Gate	√	VSSOP8, TSSOP8
	RS4G08-Q1	Quadruple 2-Input Positive-AND Gate	√	SOP14, TSSOP14, QFN2.5X3
	RS4GT08-Q1	Quadruple 2-Input Positive-AND Gate	√	TSSOP14
	RS1G11-Q1	Single 3-Input Positive-AND Gate	√	SC70-6
	RS3G11-Q1	Triple 3-Input Positive-AND Gate	√	TSSOP14
	RS1G14-Q1	Single Schmitt-Trigger Inverter	√	SC70-5
	RS2G14-Q1	Dual Schmitt-Trigger Inverter	√	SC70-6
	RS6G14-Q1	Six Channel Schmitt-Trigger Inverter	√	TSSOP14
	RS1G17-Q1	Single Schmitt-Trigger buffer	√	SC70-5
	RS2G17-Q1	Dual Schmitt-Trigger Buffer	√	SC70-6
	RS1G32-Q1	Single 2-Input Positive-OR Gate	√	SOT23-5, SC70-5
	RS4G32-Q1	Quad Channel 2-input OR Gate	√	SOP14,TSSOP14
	RS4GT32-Q1	Quad Channel 2-input OR Gate,TTL Input	√	TSSOP14, QFN2.5*3
	RS2G34-Q1	Dual Channel Buffer Gate	√	UDFN1.45X1-6
	RS1G125-Q1	Single Bus Buffer Gate With 3-State Output	√	SC70-5
	RS4G125-Q1	Quad Active-Low Bus Buffer Gate, 3-State Output	√	SOP14,TSSOP14
	RS1G126-Q1	Single Active-High Bus Buffer Gate, 3-State Output	√	SC70-5
	RS4G126-Q1	Quad Active-High Bus Buffer Gate, 3-State Output	√	SOP14, TSSOP14
	RS1G74-Q1	Single Positive-Edge-Triggered D-Type Flip-Flop	√	VSSOP-8
	RS1G79-Q1	Single D-type flip-flop; positive-edge trigger	√	SC70-5
	RS1G175-Q1	Single D-Type Flip-Flop with Asynchronous Clear	√	SC70-6
	RS1G373-Q1	Single D-type transparent latch; 3-state	√	SC70-6
	RS244-Q1	Octal Buffer/Driver With 3-State Outputs	√	TSSOP20
	RS244S-Q1	Octal Buffer/Driver With 3-State Outputs	√	TSSOP20
	RS245S-Q1	Octal Bus Transceiver with 3-State Outputs	√	TSSOP20
	RS244T-Q1	TTL input, Octal Buffer/Driver ,3-State Outputs	√	TSSOP20
	RS4538-Q1	Dual retriggerable precision monostable multivibrator	√	TSSOP16
	RS541T-Q1	TTL input ,Octal Buffers and Line Drivers ,3-State Outputs	√	TSSOP20
	RS573-Q1	Octal D-type transparent Latch,3-State Outputs	√	TSSOP20
	RS595-Q1	8-Bit Shift Registers With 3-State Output	√	SOP16,TSSOP16
	RS595T-Q1	8-Bit Shift Registers, 3-State Output, TTL Input	√	TSSOP16
	RS74HC74-Q1	Dual Positive-Edge-Triggered D-Type Flip-Flop with set and reset	√	SOP14,TSSOP14

电压基准源	RS431-Q1	Precision Programmable Reference	√	SOT23
	RS432-Q1	Precision Programmable Reference	√	SOT23
	RS3112-Q1	Low-Noise, Very Low Drift (10ppm/°C) Precision Voltage Reference	√	SOT23
	RS34xx-Q1	Low-Noise, Very Low Drift (10ppm/°C) Precision Voltage Reference	√	SOT23-6

线性稳压器	RS3009-Q1	60V / 100mA Output Current LDO	On going	SOT23-3,SOT23-5, SOT223
	RS3010-Q1	40V/150mA Low-Dropout Voltage-Tracking LDO	On going	ESOP8
	RS3011-Q1	40V / 300mA Low-Dropout Voltage-Tracking LDO	√	ESOP8
	RS3012-Q1	40V/400mA Low-Dropout Voltage-Tracking LDO	On going	TO252-4,TO263-5
	RS3014-Q1	45V/150mA Ultra-Low IQ LDO	On going	SOT23-3,SOT23-5,SOT223
	RS3015-Q1	45V / 300mA, Low Quiescent Current, High PSRR LDO	√	SOT23-5, SOT89-5, SOT223, DNF2x2-6, ESOP8
	RS3017-Q1	40V / 300mA, Low-Quiescent CurrentAdjustable Output Linear Regulator	On going	ESOP8
	RS3027-Q1	40V / 300mA, Low-Quiescent CurrentAdjustable Output Linear Regulator	On going	ESOP8
	RS3215-Q1	6.5V / 500mA, Low Quiescent Current, Low Noise High PSRR LDO	√	SOT23-5,DFN2x2-6, DFN3x3-8

电压检测和复位	RS706-Q1	Supply Voltage Supervisor with Watchdog and Manual Reset	√	SOP8
电压检测和复位	RS806-Q1	Supply Voltage Supervisor with Watchdog and Manual Reset	√	SOT23-5

时钟和计时器

RS555-Q1

Precision Timers

√

SOP8

LED驱动	RS3700-Q1	Single-Channel Linear LED Driver	√	HMSOP-8
	RS3702-Q1	Three-Channel, High-Side LED Driver with Thermal Sharing Control	√	ETSSOP16
	RS3703-Q1	Three-Channel, High-Side LED Driver with Thermal Sharing and Off-Board Binning	√	ESSSOP20

AEC-Q100是美国汽车电子协会(automotive electronics council, AEC)针对车载应用、汽车零部件、汽车车载电子制定实施的可靠性测试标准规范，目的是建立质量管理控制标准，提高车载电子的稳定性和标准化。AEC-Q100认证是集成电路厂商进入汽车领域的入场券，对芯片的质量和可靠性有极高的要求。与消费类半导体相比，汽车电子元器件与芯片的可靠性要求更高，需在更为苛刻的环境下保持正常运行。目前，汽车电子领域常用的认证标准是AEC-Q100，此标准是由汽车电子协会发布的一套集成电路质量测试标准，虽并不是强制认证制度，但现已成为汽车电子领域的通用测试标准。

AEC-Q100

AEC-Q100测试项目

序号	测试项目	缩写	检测方法
A组加速环境应力测试
A1	预处理	PC	J-STD-020 JESD22-A113
A2	有偏温湿度或有偏高加速应力测试	THB/HAST	JESD22-A01 JESD22-A110
A3	高压或无偏高加速应力测试或无偏温湿度测试	AC/UHST/TH	JESD22-A102 JESD22-A118 JESD22-A101
A4	温度循环	TC	JESD22-A104
A5	高温存储寿命测试	HTSL	JESD22-A103
B组加速寿命模拟测试
B1	高温工作寿命	HTOL	JEDEC JESD22-A108
B2	早期寿命失效率	ELFR	AEC-Q100-008
C组封装组合完整性测试
C1	绑线剪切	WBS	AEC-Q100-001
C2	绑线拉力	WBP	MIL-STD883 Method 2011
C3	可焊性	SD	JESD22-B102
C4	物理尺寸	PD	JESD22-B100 JESD22-B108
C5	锡球剪切	SBS	AEC-Q100-010
C6	引脚完整性	LI	JESD22-B105
D组芯片晶圆可靠性测试
D1	电迁移	EM	/
D2	经时介质击穿	TDDB	/
D3	热载流子注入	HCI	/
D4	负温压温度不稳定性	NBTI	/
D5	应力迁移	SM	/
E组电气特性确认测试
E1	应力测试前后功能参数测试	TEST	规格书
E2	静电放电(HBM)	HBM	AEC-Q100-002
E3	静电放电(CDM)	CDM	AEC-Q100-011
E4	闩锁效应	LU	AEC-Q100-004
E5	电分配	ED	AEC-Q100-009
E6	故障等级	FG	AEC-Q100-007
E7	特性描述	CHAR	AEC-Q003
E8	电磁兼容	EMC	SAE JI752/3
F组缺陷筛选测试
F1	过程平均测试	PAT	AEC-Q001
F2	统计良率分析	SBA	AEC-Q002

选取与国际一流车规级汽车电子原厂相同且是行业最顶尖的Cohu三温测试设备，同时开创性地在晶圆级测试中使用低温测试方案，使用行业内最高水准，最通用的 TSK 三温Prober，使测试芯片能够更准确降温到指定温度；润石已经分批次购买数十台Cohu三温测试设备，首批已经投入使用。

AEC-Q100

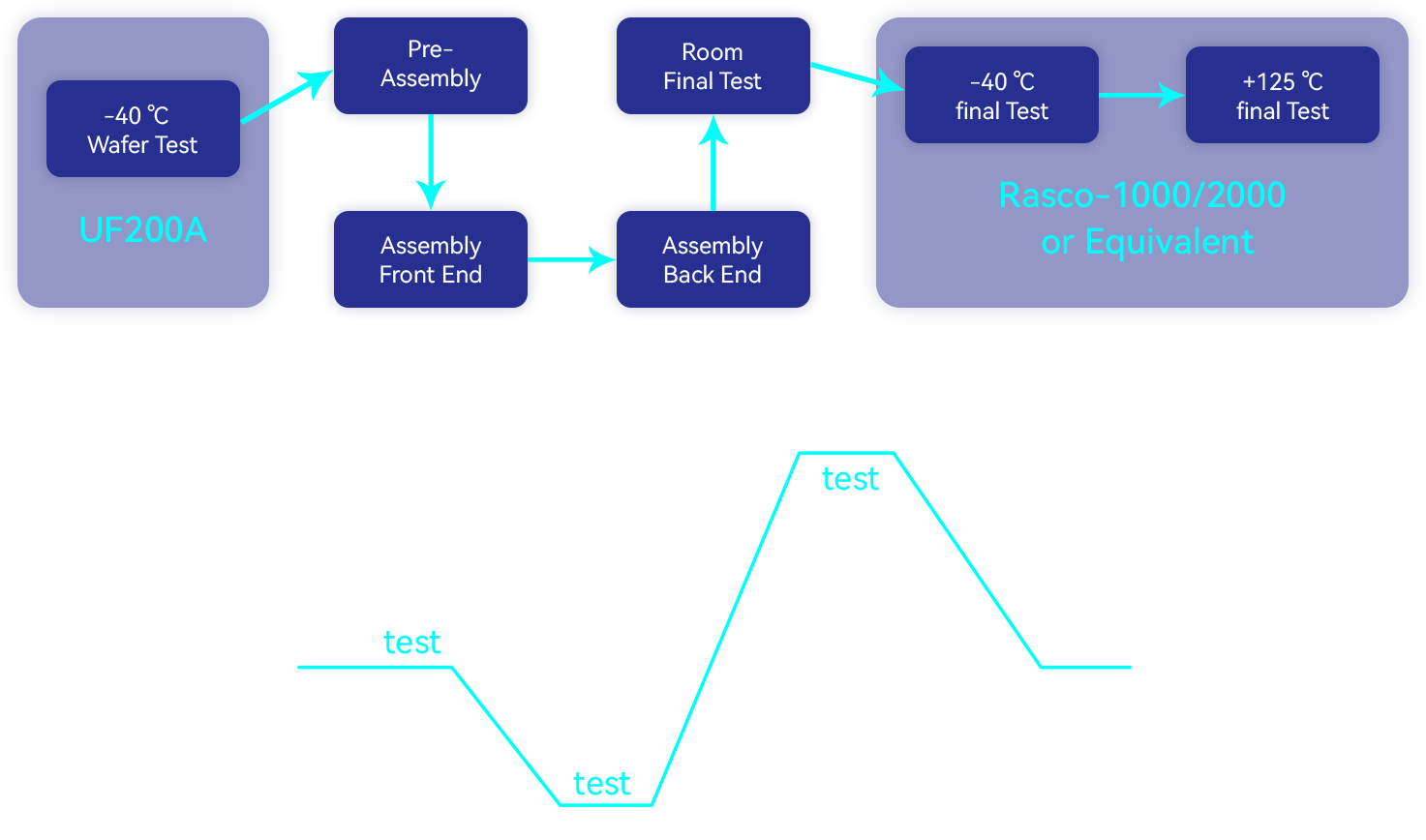

三温测试流程

典型应用

动力总成

（电机控制系统、车辆控制单元、电动汽车减速器、电池管理系统、板载充电器、DC/DC转换器、虚拟引擎声浪系统、电动助力转向）

电机控制系统
