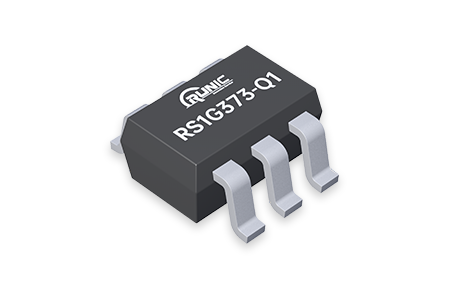

RS1G373-Q1
The RS1G373-Q1 device is a single D-type latch is designed for 1.65V to 5.5V VCC operation. This device is particularly suitable for implementing buffer registers, l/O ports, bidirectional bus drivers and working registers. While the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is taken low, the Q outputs are latched at the logic levels set up at the D inputs.
