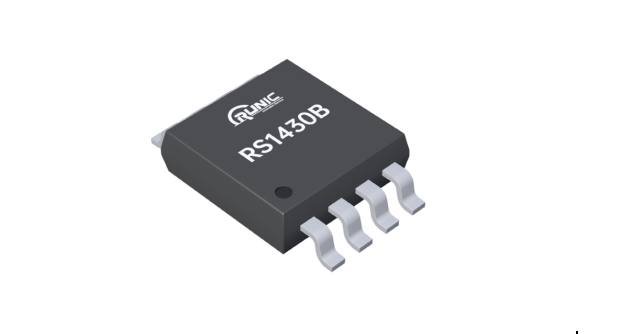

The RS1430B

2024-03-18
Page View:995
Source:

The RS1430B is a high-speed, low-power, single-channel, 16-bit analog-to-digital converter designed with the SAR architecture, with a maximum sampling rate of 400 KSPS. The RS1430B supports single-ended and pseudo-differential inputs, as well as the SPI serial interface standard, with an external reference voltage that can be set arbitrarily within the range of 0.1V to VDD.



With a signal-to-noise ratio of 90.5dB, a noise figure of 45µVrms, and a dynamic power consumption of only 13mw in a 5V-powered scenario, it is ideally suited for precision signal acquisition in portable and battery-powered systems.The RS1430B is pin-compatible with ADS7816, ADS7822, ADS7826, ADS7827, ADS7829, ADS8320, ADS8325, ADS8326. It can be used in a variety of applications such as medical devices, vehicle navigation, industrial control and data acquisition systems.
