The vehicles require higher reliability standard analog ICs. In order to comply with that, Runic technology is collaborating with wafer foundries that areI ATF16949 certified with mature AEC-Q100 process, as well as industry leading assembly factories, such as ASEN Semiconductors Co, etc., in order to develop automotive grade products that meet AEC-Q100 and MSD1. In addition, Runic is also adopting ISO26262 ASILD safety standard system under the guidance of TÜV Rheinland.

AEC-Q100 QUALIFICATION LIST
Product category Product Package Wafer output Package design & material preparation Package design of experiment Seal test trial production
Operational amplifier RS722PXK-Q1 SOP8 Done Done Done Done
RS724XP-Q1 SOP14 Done Done Done Done
RS8414PXQ-Q1 TSSOP14 Done Done Done Done
RS8452XK-Q1 SOP8 Done Done Done Done
RS8454XP-Q1 SOP14 Done Done Done Done
RS8454PXQ-Q1 TSSOP14 Done Done NA TBD
RS622XQ-Q1 TSSOP8 Done Done TBD
RS8412PXK-Q1 SOP8 TBD
RS721PXF-Q1 SOT23-5 Done Done Done Done
RS8557XF-Q1 SOT23-5 Done Done Done
RS8411XF-Q1 SOT23-5 Done Done On going
Comparator LM2901XQ-Q1 TSSOP-14 Done Done Done Done
LM2903XK-Q1 SOP8 Done Done Done Done
RS393XK-Q1 SOP8 Done Done Done Done
RS331XF-Q1 SOT23-5 Done Done On going
RS8907XF-Q1 SOT23-5 Done Done On going
Analog switch RS2251XTSS16-Q1 TSSOP16 Done Done Done Done
Level converter RS2T45XVS8-Q1 VSSOP8 Done Done Done Done
RS8T245YTSS24-Q1 TSSOP24 Done Done Done Done
RS4T245XTQW16-Q1 DHVQFN 16 Done Done Done Done
RS1T45XC6-Q1 SOT363 Done Done Done Done
RS1T34XF5-Q1 SOT23-5 Done Done
RS8T245YS24-Q1 SOP24 NA
Logic IC RS244YTSS20-Q1 TSSOP20 Done Done Done Done
RS1G32XF5-Q1 SOT23-5 Done Done Done Done
RS1G08XC5-Q1 SC70-5 Done Done Done Done
RS1G14XC5-Q1 SC70-5 Done Done Done
RS1G17XC5-Q1 SC70-5 Done Done Done
RS1G00XC5 SC70-5 Done TBD
RS1G14XF5-Q1 SOT23-5 Done Done
Voltage reference RS431AYSF3Q-Q1 SOT23 On going

developing...

AEC-Q100 is a failure mechanism based stress test qualification for packaged integrated circuits used in automotive applications. This specification has been established by the Automotive Electronics Council (AEC) to define part-qualification and quality-system standards for packaged integrated circuits used in the automotive industry. In order to ensure proper function in harsh environment, electronics used in automotive industry has to meet higher quality and reliability standard that is defined in AEC-Q100.

AEC-Q100 TEST ITEM
NO TEST ITEM ABBREVIATION. TEST METHODOLOGY
GROUP A Accelerated Environmental Stress Tests
A1 Pre-conditioning PC

J-STD-020

JESD22-A113

A2 temperature/humidity/bias / highly accelerated stress test THB/HAST

JESD22-A01

JESD22-A110

A3 autoclave / unbiased HAST / temperature humidity AC/UHST/TH

JESD22-A102

JESD22-A118

JESD22-A101

A4 temperature cycling TC JESD22-A104
A5 High temperature storage life HTSL JESD22-A103
GROUP B Accelerated Lifetime Simulation Tests
B1 high temperature operating life HTOL JEDEC JESD22-A108
B2 early life failure rate ELFR AEC-Q100-008
GROUP C Package Assembly Integrity Tests
C1 wire bond shear WBS AEC-Q100-001
C2 wire bond pull WBP MIL - STD 883 Method2011
C3 solderability MCM external leads SD JESD22-B102
C4 physical dimensions PD

JESD22-B100

JESD22-B108

C5 solder ball shear SBS AEC-Q100-010
C6 lead integrity LI JESD22-B105
GROUP D Die Fabrication Reliability Tests
D1 electromigration EM /
D2 time dependent dielectric breakdown TDDB /
D3 hot carrier injection HCI /
D4 negative bias temperature instability NBTI /
D5 stress migration SM /
GROUP E Electrical Verification Tests
E1 pre-and post-stress function/parameter TEST 规格书
E2 electrostatic discharge human body model HBM AEC-Q100-002
E3 electrostatic discharge charged device model CDM AEC-Q100-011
E4 latch-up LU AEC-Q100-004
E5 electrical distribution ED AEC-Q100-009
E6 fault grading FG AEC-Q100-007
E7 characterization CHAR AEC-Q003
E8 electromagnetic compatibility EMC SAE JI752/3
GROUP F Defect Screening Tests
F1 part averaging testing PAT AEC-Q001
F2 statistical bin/yield analysis SBA AEC-Q002

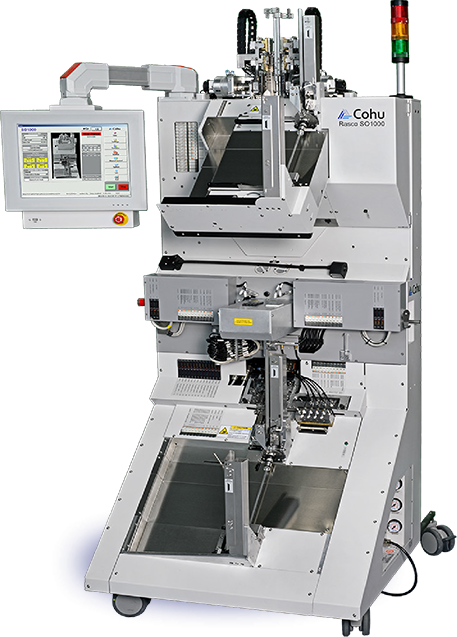

Highest standard TSK tri-temperature prober and industry leading Cohu tester are used to implement Runic's tri-temperature test.

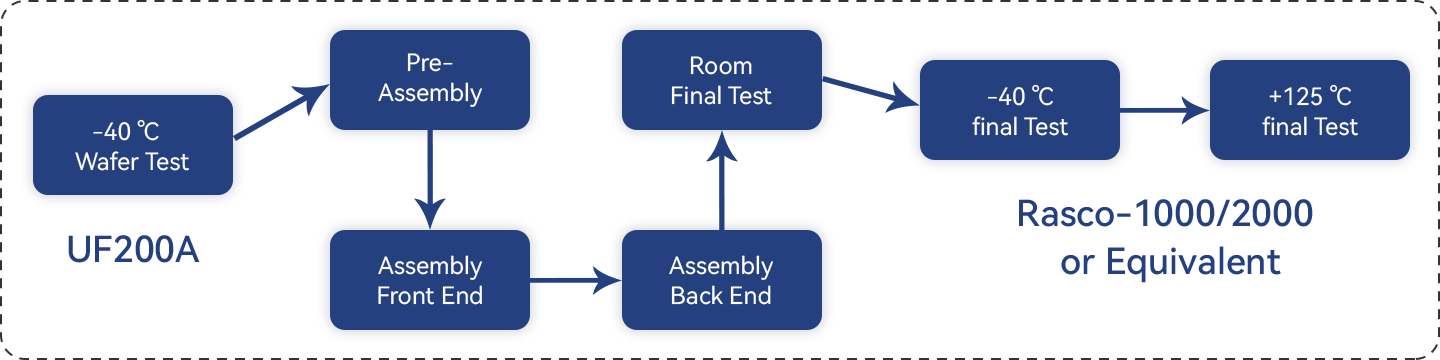

TRI-TEMPERATURE TESTING PROCESS

Runic implements low temperature test to screen wafer level early defects and room/high temperature tests for finished goods. All automotive grade products at Runic will go through full tri-temperature test flow.

TYPICAL APPLICCATION
TYPICAL APPLICCATION
Power Parts
Power Parts
VCU
Low offset Op-amp
RS721P / RS722P / RS724P
General-purpose Op-amp.
RS321 / RS358 / RS324
High Voltage general Op-amp
RS8412 / RS8414 / RS8422 / RS8424
Shunt Voltage Reference
RS431 / RS432
Level Converter
RS2T45 / RS0104 / RS0204 / RS0108 /RS8T245
Motor Cotrol
Low offset Op-amp
RS721P / RS722P / RS724P
General-purpose Op-amp
RS321 / RS358 / RS324 / LM358
High Voltage general Op-amp
RS8411 / RS8412 / RS8414
High Voltage Comparator
LM393 / LM331 / LM2903 / LM2901
Shunt Voltage Reference
RS431 / RS432
Level Converter
RS2T45 / RS8T245
Small Logic
RS4G00 / RS1G08 / RS2G08 / RS4G08 / RS1G17 / RS1G125
Gear box
Low offset Voltage Op-amp
RS721P / RS722P / RS724P
General-purpose Op-amp
RS321 / RS358 / RS324 / LM358
High Voltage general Op-amp
RS8411 / RS8412 / RS8414
High-precision Op-amp
RS8551
High Voltage Comparator
LM393 / LM2903
Shunt Voltage Reference
RS431 / RS432
Small Logic
RS4G00 / RS1G08 / RS2G08 / RS4G08 / RS1G17 / RS1G125
BMS
Low offset Voltage Op-amp
RS721P / RS722P / RS724P
General-purpose Op-amp
RS321P/RS358/LM358
High Voltage general Op-amp
RS8411 / RS8412 / RS8414
High-precision Op-amp
RS855X
High-speed Comparator
RS331 / RS393
High Voltage Comparator
LM331 / LM2901 / LM2903
Shunt Voltage Reference
RS431 / RS432
Level Converter
RS2T45 / RS0204 / RS0108
Small Logic
RS4G00 / RS1G08 / RS2G08 / RS4G08 / RS1G17 / RS1G125
OBC
Low offset Voltage Op-amp
RS721P / RS722P / RS724P / RS821P
General-purpose Op-amp
RS321 / RS358  / LM358
High Voltage general Op-amp
RS8411 / RS8412 / RS8414
High-precision Op-amp
RS855X
High-speed Comparator
RS331 / RS393
High Voltage Comparator
LM331 / LM2901 / LM2903
Shunt Voltage Reference
RS431 / RS432
Analog Switcg
RS2251 / RS2166 / RS2057
DC/DC converter
Low offset Voltage Op-amp
RS721P / RS722P / RS724P/ RS6331P
General-purpose Op-amp
RS321 / RS358  / LM358
High Voltage general Op-amp
RS8411 / RS8412 / RS8414
High-precision Op-amp
RS8751 / RS8752
High-speed Comparator
RS331 / RS393
High Voltage Comparator
LM331  / LM2903
Shunt Voltage Reference
RS431 / RS432
EPS
Low offset Voltage Op-amp
RS721P / RS722P / RS724P
General-purpose Op-amp
RS321 / RS358  / LM358
High Voltage general Op-amp
RS8411 / RS8412 / RS8414
High-precision Op-amp
RS8551
High-speed Comparator
RS331 / RS393
High Voltage Comparator
LM331 / LM2901 / LM2903
Analog Switcg
RS2057
Small Logic
RS1G08 / RS2G08 / RS1G125
VESS
Low offset Voltage Op-amp
RS721P / RS722P / RS724P
General-purpose Op-amp
RS321 / RS358  / LM358
High Voltage general Op-amp
RS8411 / RS8412 / RS8414
High-speed Comparator
RS331
High Voltage Comparator
LM331 / LM2903
Level Converter
RS2T45 / RS0102 / RS0202
AUTOMOTIVE ELECTRONICS QUALITY SYSTEM
AUTOMOTIVE ELECTRONICS QUALITY SYSTEM

Runic Technology is continuously pursuing higher quality management systems. We have established DQE, SQE, CQE, QS to improve quality management on design, manufacture and test, which will result in higher product quality.
