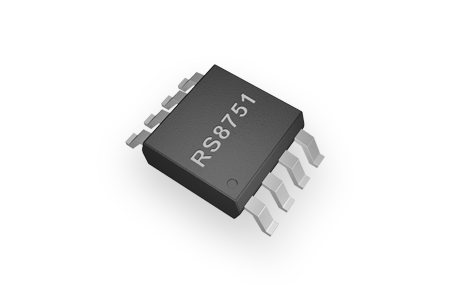

RS8751
High-speed operational amplifier
RS8751

The RS875X families of voltage-feedback (VFB) products offer low voltage operation, negative-rail input, rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (250MHz) and slew rate of 180V/us.

GENERAL DESCRIPTION


The RS875X families of voltage-feedback (VFB) products offer low voltage operation, negative-rail input, rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (250MHz) and slew rate of 180V/us. The op-amps are unity gain stable and feature an ultra-low input bias current.

These amplifiers set an industry-leading power-toperformance ratio for rail-to-rail amplifiers. The RS875X families of operational amplifiers are specified at the full temperature range of −40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.


FEATURES


• HIGH GAIN BANDWIDTH:250MHz
• RAIL-TO-RAIL OUTPUT
• 1.5mV Typical Vos
• INPUT VOLTAGE RANGE: -0.2V to +3.9V with Vs = 5V
• SUPPLY RANGE: +2.5V to +5.5V
• SPECIFIED UP TO +125°C
• Micro SIZE PACKAGES: SOT23-5


APPLICATIONS


• AUDIO ADC INPUT BUFFERS
• PHOTODIODE PREAMP
• HIGH-DENSITY SYSTEMS
• PORTABLE SYSTEMS
• DRIVING A/D CONVERTERS


PIN CONFIGURATIONS
