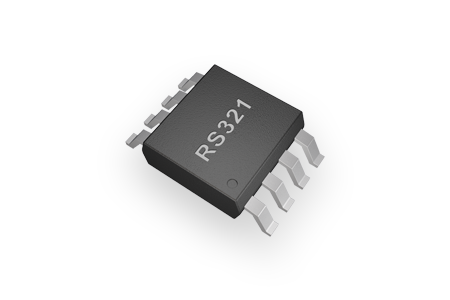

RS321
汎用オペアンプ
RS321

The RS321, RS358, RS324, RS321S, RS358S families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us.

GENERAL DESCRIPTION


The RS321, RS358, RS324, RS321S, RS358S families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current.

The devices are ideal for sensor interfaces, active filters and portable applications. The RS321S, RS358S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA.The RS321, RS358, RS324, RS321S, RS358S families of operational amplifiers are specified at the full temperature range of −40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.


FEATURES


• HIGH GAIN BANDWIDTH:1.1MHz
• RAIL-TO-RAIL INPUT AND OUTPUT 0.8mV Typical Vos
• INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V
• SUPPLY RANGE: +2.5V to +5.5V
• SHUTDOWN: RS321S/RS358S
• SPECIFIED UP TO +125°C
• MicroSIZE PACKAGES: SOT23-5, SOT23-6


APPLICATIONS


• SENSORS
• PHOTODIODE AMPLIFICATION
• ACTIVE FILTERS
• TEST EQUIPMENT
• DRIVING A/D CONVERTERS


PIN CONFIGURATIONS
