RS2057
アナログスイッチ
RS2057

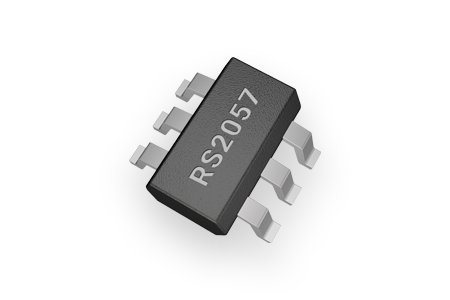

The RS2057 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.8 V to 5.5 V.

GENERAL DESCRIPTION


The RS2057 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.8 V to 5.5 V.

The RS2057 device can handle both analog and digital signals. It features hign-bandwidth(300MHz) and low on-resistance (4.5Ω TYP).

Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.


FEATURES


• High Bandwidth: 300MHz
• High Speed, Typically 30ns
• Supply Range: +1.8V to +5.5V
• Low ON-State Resistance, 4.5Ω(TYP)
• Break-Before-Make Switching
• Rail-to-Rail Operation
• TTL/CMOS Compatible
• Extended Industrial Temperature Range: -40°C to +125°C
• MicroSIZE PACKAGES: SOT363 (SC70-6), SOT23-6


APPLICATIONS


• Wearable Devices
• Battery-Operated Equipment
• Signal Gating, Chopping, Modulation or Demodulation (Modem)

• Portable Computing
• Cell Phones


PIN CONFIGURATIONS
