LVDS接口

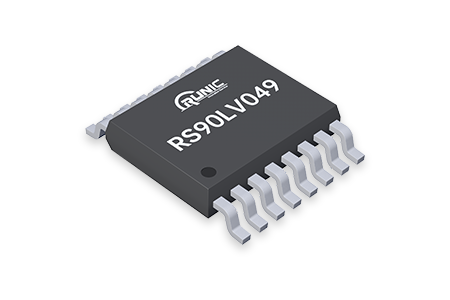

RS90LV049
1 FEATURES • Conforms to TIA/EIA-644 Standard • 400Mbps (200MHz) Switching Rates • 3.3V Power Supply • ±350mV Differential Signaling • Supports Input Failsafe Open, Short, and Terminated • Flow-Through Pinout Simplifies PCB Layout • Low Power Dissipation (78mW at VDD=3.3V Typical) • TSSOP16 Package • Industrial Temperature Operating Range (-40°C ~85°C) 2 APPLICATIONS • Multifunction Printers • LVDS-LVCMOS Translation
