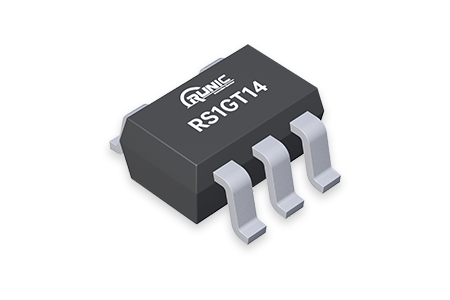

RS1GT14
The RS1GT14 Single Schmitt-trigger inverter is designed for 2.0V to 5.5V VCC operation. The RS1GT14 device contains one inverter and performs the Boolean function Y= A . The device functions as an independent inverter with Schmitt- trigger inputs, so the device has different input threshold levels for positive-going (VT+) and negative going (VT-) signals to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals.
