DESCRIPTION

The RS550 is a high-performance four-pole single throw(4PST) normally closed Depletion-Mode isolation switch. The Depletion Mode technology allows the device to conduct signals when there is no VCC available and to isolate the signals when VCC is present.

The RS550 operates on a wide VCC range for design flexibility. Additionally, select pins allow the internal oscillator frequency to be adjusted between 500 kHz and 750 kHz in 75 kHz steps when VCC is present. This feature is used to shift the electromagnetic interference (EMI) signature to meet customer specifications.

FEATURES

• 4PST(NC)

• Depletion Mode MOSFETs

• Audio Frequency Range

• Supply Range: +1.6V to +3.0V

• Low ON-State Resistance:0.5Ω (TYP)

• RON Flat: 0.01 Ω Typical

• THD+N: 0.002% Typical

• Extended Industrial Temperature Range: -40°C to +85°C

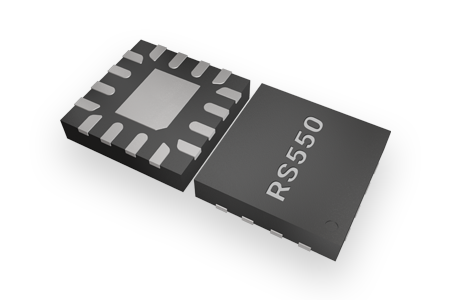

• Available in Green WLCSP12 and QFN2.5*2.5-12 Package

APPLICATIONS

• MP3 Portable Media Players

• Cell Phones

PIN CONFIGURATIONS
